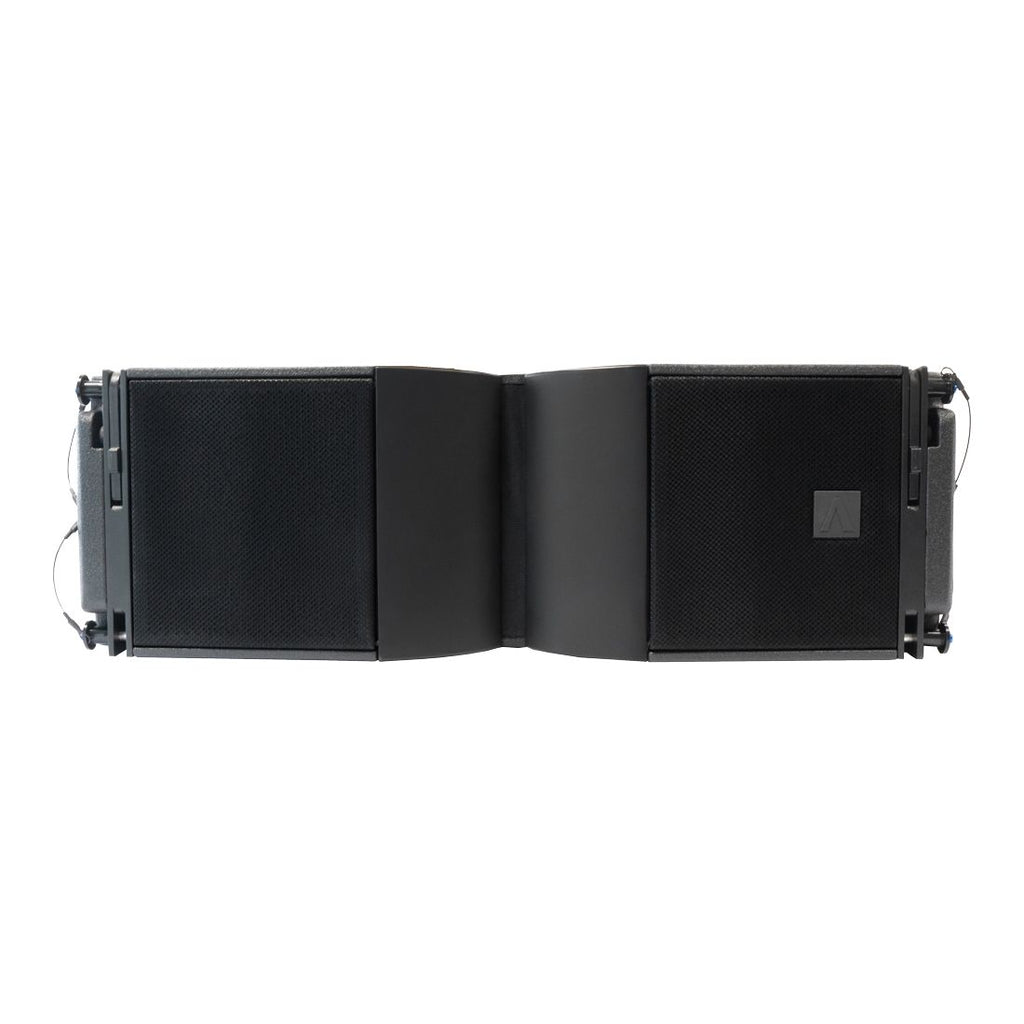

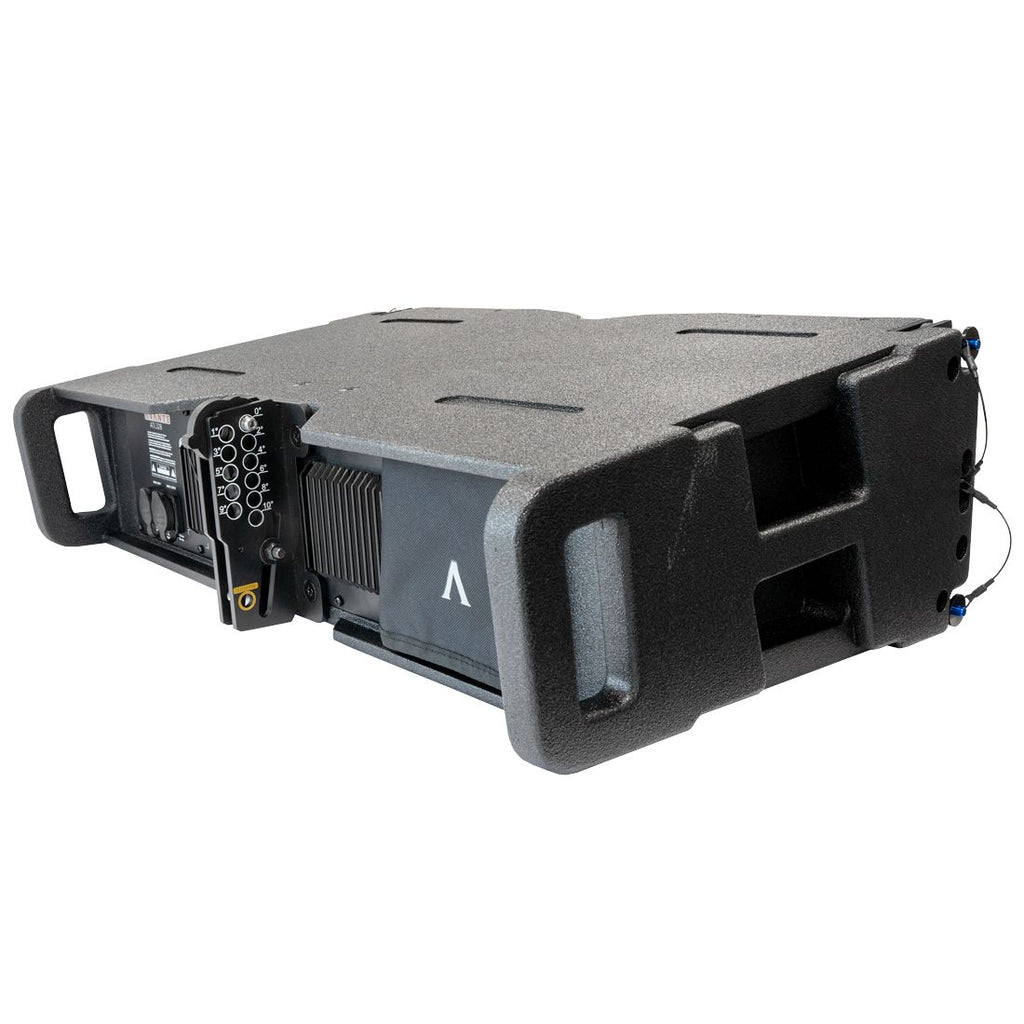

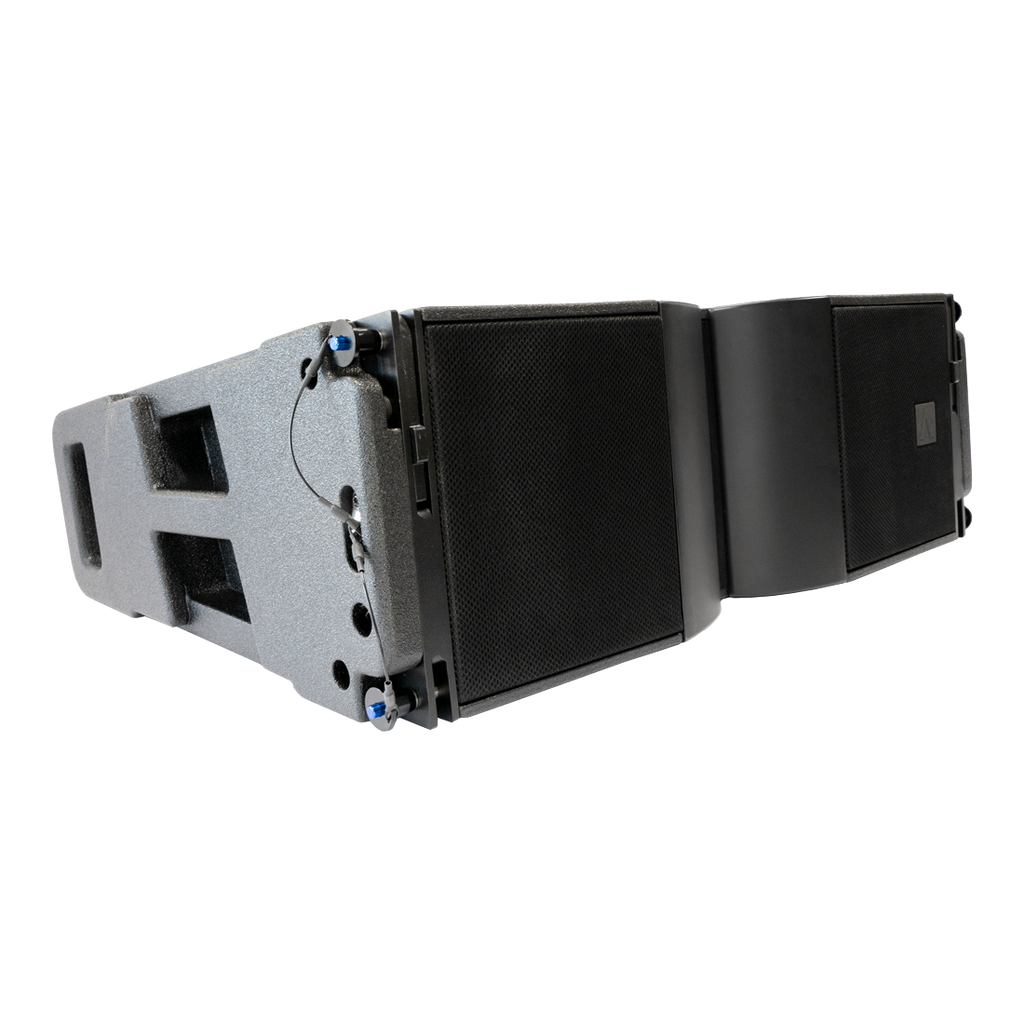

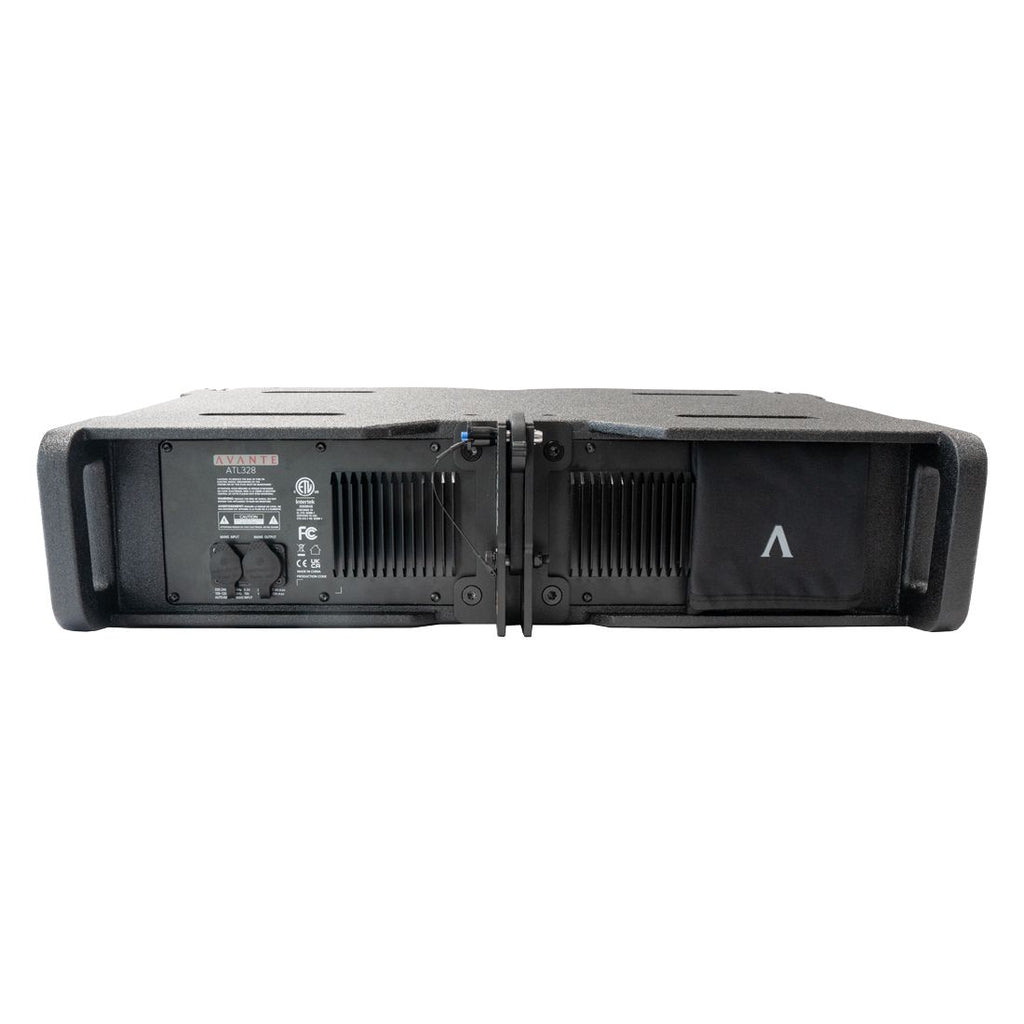

Avante Akro ATL328 line-array top actief

De Avante Tour-serie ATL328 is een professionele 3-weg actieve kleinformaat lijnarray die is ontworpen voor middelgrote tot grote evenementen en combineert mooi met de Avante ATS218 subwoofer.

Specificaties:

• Speaker Type: 3-Way Active, 2x8" Line Array Module, Milan certified
• Frequency Response: 70 - 20,000 Hz
• • Max SPL: One Unit 127 dB
• • MF/HF: Coaxial 4" (MF) + 2.55" (HF) - Neodymium on custom waveguide
• • LF: 2 x 8" (2.5" voicecoil) - Neodymium
• • Crossover Frequencies: 600 Hz / 3.5 kHz
• • Horizontal Directivity: 110°
• • Vertical Directivity: Depends on array size and configuration
•    Channels: 3 Channels, 1 LF, 1 MF, 1 HF
• • Power: 600 W RMS, 1200 W Program, 1800 W Peak
• • Cooling: Convection, Internal Fan
• • Power Supply: Auto switching 100V~ - 240V~, 50-60Hz
• • Protection: Thermal, DC Offset, Output Short
•    DSP: 64-bit Multimode with Milan
• • Sample Rate: 96 kHz
• • Limiter: Multiband compressor, Peak Limiter
• • Processing (filters): FIR Linear Phase & 10-band IIR

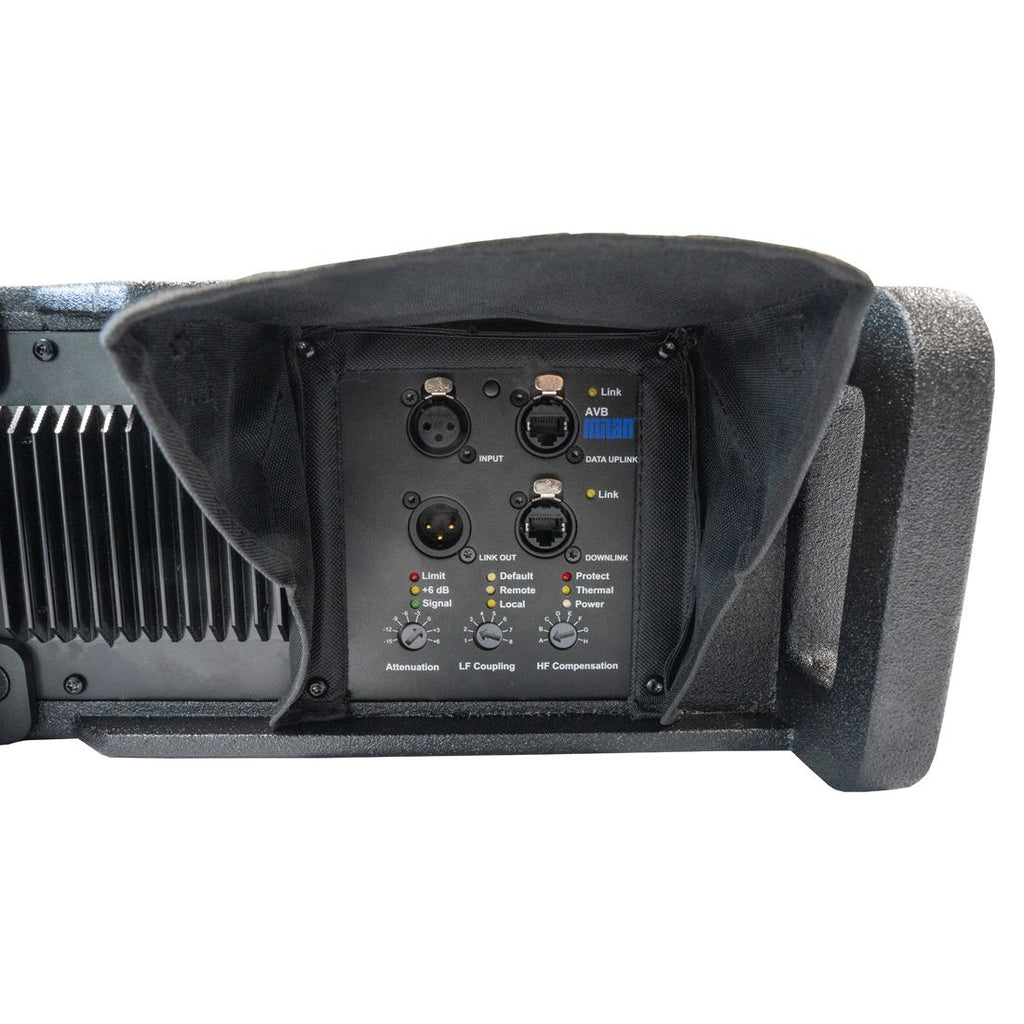

•    Signal In/Out (analogue): 3-pin XLR
• • Power Socket: IP65 Locking Power In/Out
• • Network: Locking RJ45 In/Out for control and Milan
• • Controls: 1 x Input Attenuation (-15dB - +6dB), 1 x LF Coupling (8 Presets), 1 x HF Compensation (8 Presets), 1 x System Test and Reset Button
• • Special Features: Frontal LED Identification System, Inclinometer
•

  • Housing: Multiplex Plywood - Polyurea painting

    Housing Design: Trapezoidal

    Handles: 4 x Handles (1 on each side, 2 on back)

    Rain Cover: Included, fixed

    Rigging Points: 3 points rigging hardware

    Dimensions (WxHxD): 760 x 230 x 465 mm
  •  Weight: 28.6
