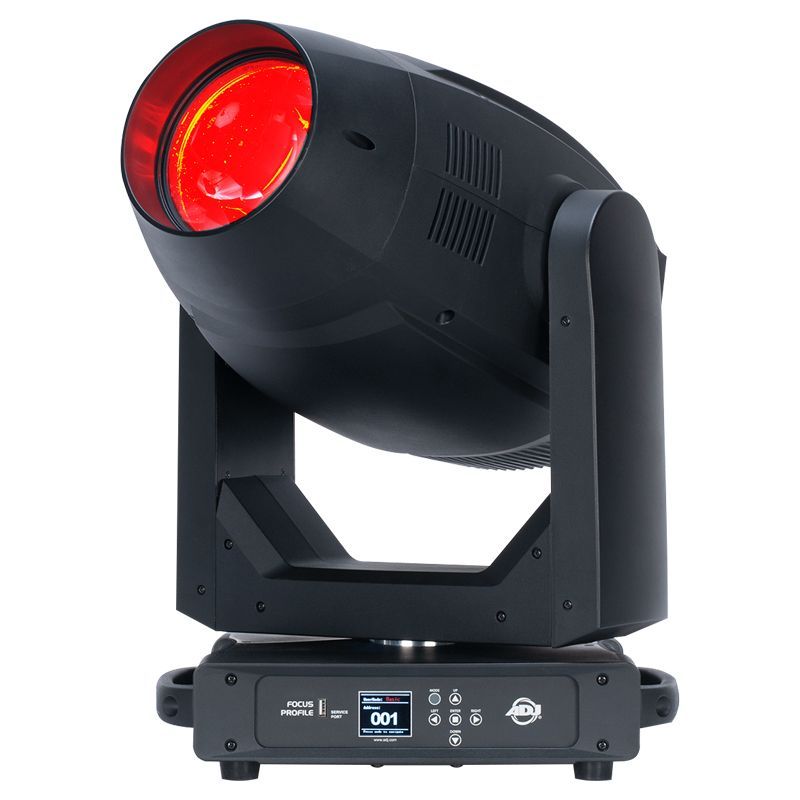

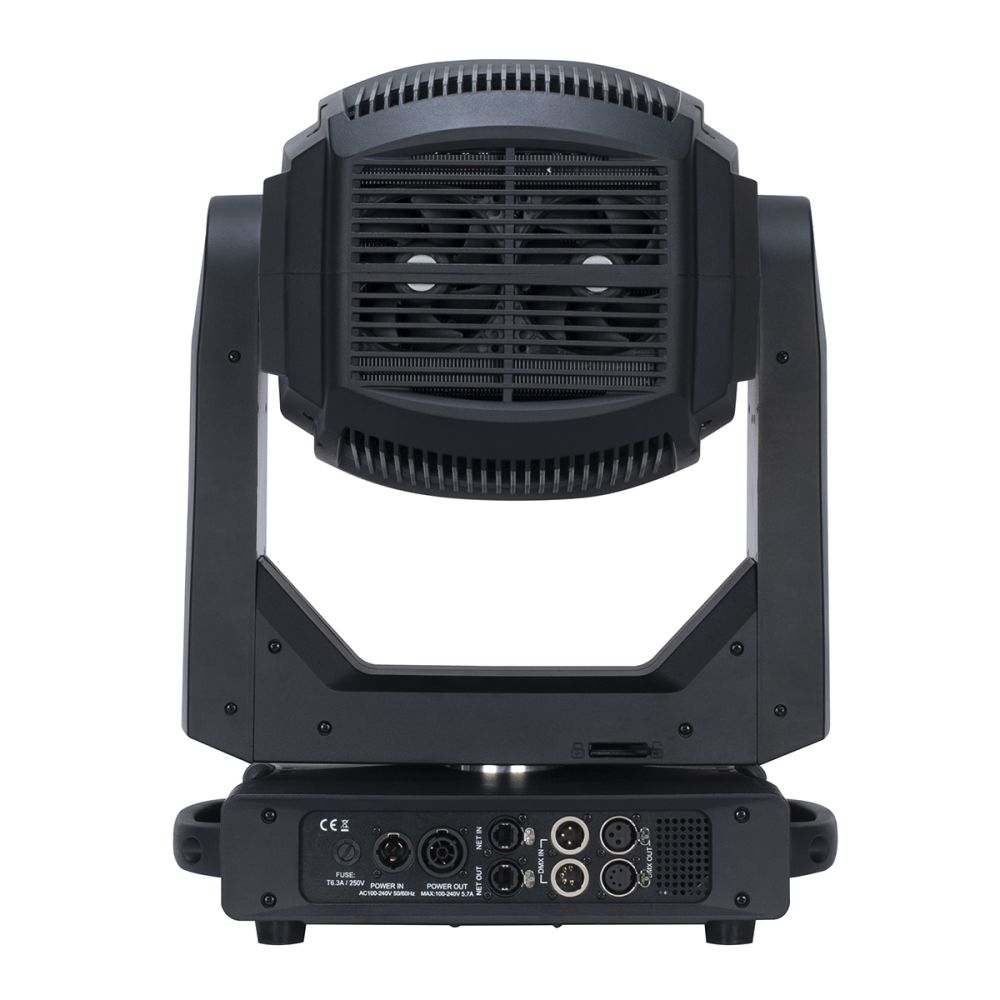

ADJ Focus Profile

• 400 W LED engine
• average LED lifetime of 20,000 hours
• Variable frame rate: 900Hz-1500Hz,2500Hz,4000Hz,5000Hz,6000Hz,10KHz,15KHz,20KHz,25KHz
• 20,990 lumens total,
• Color temperature 6,700K
• 70CRI without CRI filter
• 88 CRI with CRI filter
• 44,330 LUX / 4,118 FC @ 16.4' (5 m) (7.32 ° beam)
• 1,767 LUX / 164 FC @ 16.4' (5 m) (45° beam)

Optics

• Beam angle: 7~45°
• Rotating prisms with 3 and 6 facets
• Variable frost
• Motorized focus
• Motorized iris
• Electronic dimming and stroboscope (1-20 Hz)

Control

• 3 DMX channel modes (36 / 40 / 51)
• RDM (remote device management)
• Touch control panel with 6 buttons
• Full color 180° reversible LCD menu display
• Motion with 8 / 16 bit resolution

Color

• Full CMY color mixing
• Variable CTO
• Color wheel with 6 dichroic colors

Gobos

• 2 gobo wheels
• Gobo wheel 1: 7 interchangeable rotating indexing gobos
• Gobo wheel 2: 8 static stamped gobos

Effects

• 4 rotating framing blades (-60° ~ +60°)
• Animation wheel

Construction

• Housing: high impact flame retardant thermoplastic
• Color black
• Protection class: IP20
• Pan/Tilt Lock System

Electrical / Thermal

• Alternating current 100-240V - 50/60Hz
• Max. Power consumption: 560 W
• Max. Ambient temperature: -25 °C to 45 °C
• Max. Case temperature: 58 °C

Connections

• 3 & 5 Pin XLR DMX In/Out
• RJ45 Ethernet In/Out (Art-NET + sACN)
• IP65 In/Out power connections
• USB port for firmware updates

Dimensions & Weight

• Dimensions (WxDxH): 400x651x260mm
• Weight: 27,75 kg
