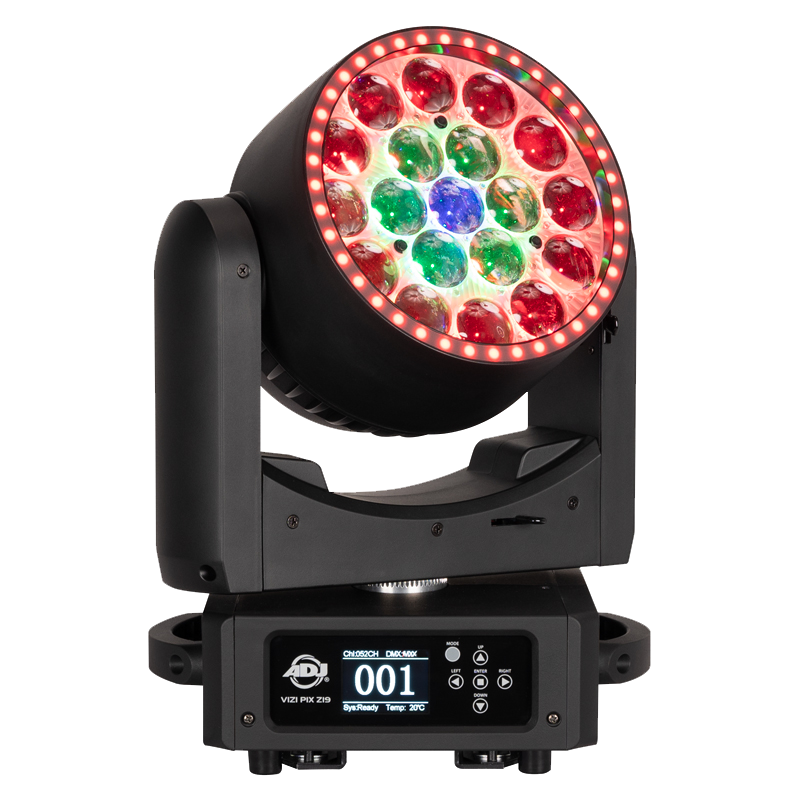

ADJ ViziPix Z19

• Moving Light Pixel Wash with Effects
• Individual Pixel Control (Foreground & Background LEDs)
• RGB LED Ring
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Pan/Tilt: 630° x 270°
• Motorized Zoom
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900Hz~25kHz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled

Technical Data

Optical (Foreground LEDs)

• 19x 30W RGBL (4-IN-1) LEDs
• 30,000 Hour Average LED Life
• CRI: 86
• 15,000 Lux (Zoomed In to 7° @ 5 meters)
• 7° to 42° Beam Angle
• 9° to 60° Field Angle

Optical (Background LEDs)

• 30x 0.5W SMD RGB LEDs
• 50,000 Hour Average LED Life

Optical (Ring LEDs)

• 40x 0.5W SMD RGB LEDs
• 50,000 Hour Average LED Life

Colors

• 19x RGBL LEDs (Red, Green, Blue and Lime)
• 70x RGB LEDs (Red, Green and Blue)
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros
• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Effects

• 19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable
• 30x 0.5W RGB Background LEDs, Fully pixel mappable
• 40x 0.5W RGB Ring LEDs, three channel control
• Variable Strobe & Pulse effects (0.5Hz to 33Hz)
• Motorized Zoom (7° to 42°)

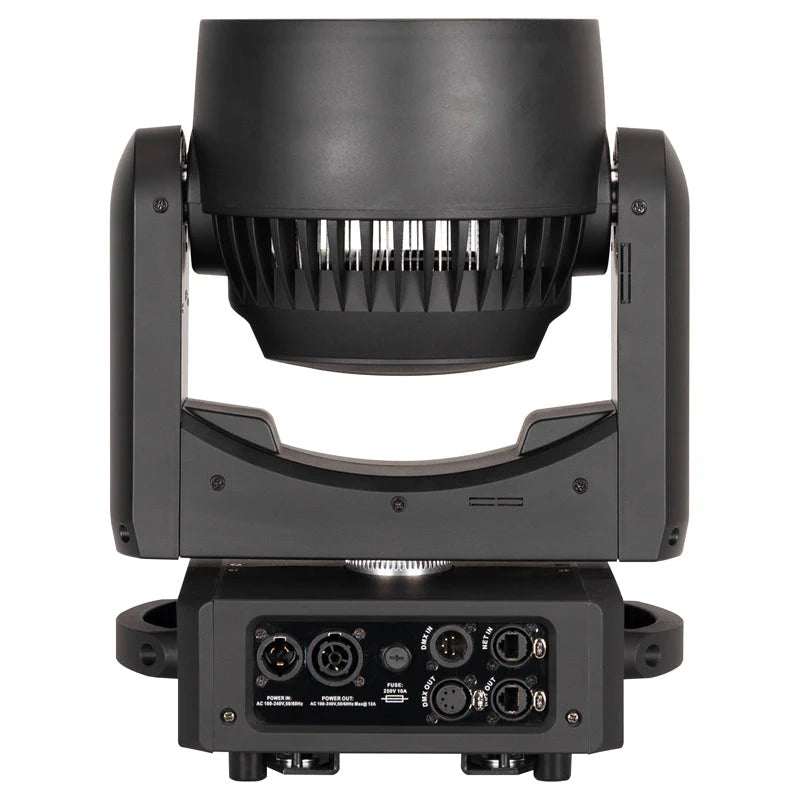

Connections

• Seetronic, IP65 locking power In & Thru Connections
• Seetronic, IP20 5-pin In & Out DMX Connections
• 2x IP20, RJ45 network ports

Control

• Aria X2 Wireless Management System
• DMX-512
• RDM (Remote Device Management)
• Artnet
• sACN
• 7 DMX Control Modes: 28 / 37 / M1 52 / M2 52 / 119 / 127 & 197 channels
• Built-In Effect Pixel Programs with Speed and Fade Control
• With Wired Digital Communication Network

Pan/Tilt

• Pan: 630° or 540°
• Tilt: 270°
• 16-Bit Fine Pan & Tilt
• Pan & Tilt Locks

Electrical

• Multi-voltage operation: AC100-230V, 50/60Hz
• Max power consumption: 550W @ 230V

Dimensions & Weight:

• Dimensions (LxWxH): 304x230x407.9mm
• Weight: 10.1 kg

Scope of Delivery

• 108mm Omega Brackets (2x)
• 1x 2M, IP65-rated locking power cable
